Margin and Cutline Configuration Guides

Technical reference manuals detailing millimeter tolerances, bleed boundaries, and optical mark clearance zones for precision cutting.

Geometric Parameters.

Standardizing Margin Clearances for High-Accuracy Cutting

Accurate registration requires rigid adherence to dimensional limits between active cut vectors, optical reading bounds, and material perimeters.

Minimum 1.5 mm inset margin maintained from cut path to internal typography.

Strict 3.0 mm optical sensor clearance around all registration marks.

Structural webbing bridge sizing calibrated for tear-free sheet matrices.

Tolerance Specs

Universal boundary offsets calibrated to compensate for mechanical sheet drift and optical scanning deflection.

2.0 mmMinimum Outer Bleed

1.5 mmInternal Inset Boundary

Recommended internal boundary clearances to ensure graphic stability and eliminate cut drift errors.

Differentiating outer bleed extension zones from visual sheet perimeters to prevent white border artifacts.

Clearance protocols around registration marks ensuring optical sensor recognition without raster interference.

Aligning digital grid guides to physical plotter rollers and mechanical feed limits.

Optimal bridge dimensions between dense cut vectors to preserve sheet integrity during feeding.

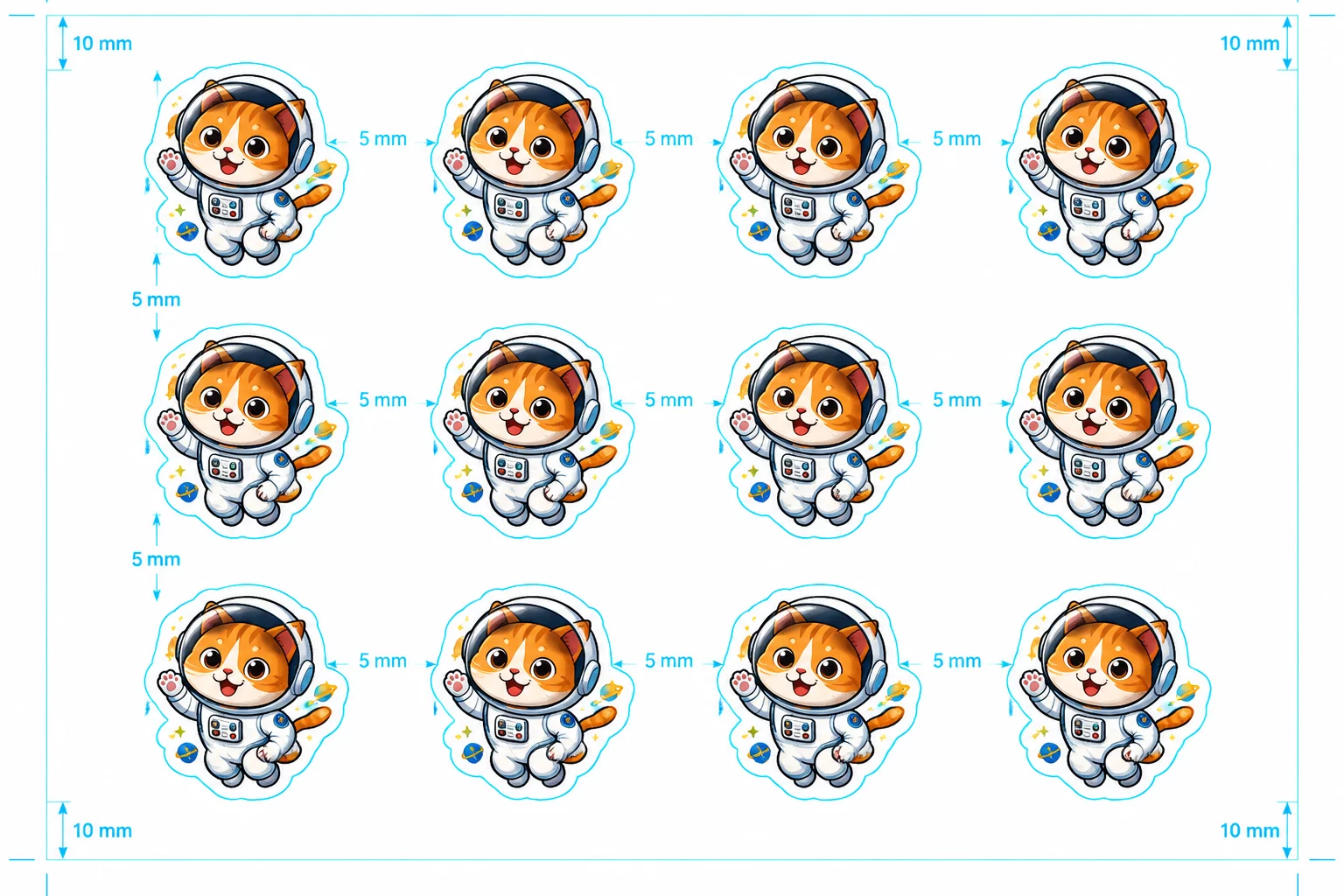

Geometric array spacing rules for multi-up imposition to maintain uniform tension during cutting.

Visual inspection workflow to verify cutlines, bounding boxes, and mark margins prior to running jobs.
